telonic 2 week lead-time on programmable DC power supply products 1.5 kW to 15 kW from Telonic InstrumentsProduct Line Overview:
SL Series: 1.5 kW to 4 kW
XR Series III: 2 kW to 8 kW
TS Series IV: 5 kW to 45 kW
MS Series IV: 30 kW to 75 kW
MT Series VI: 100 kW to 2000 kW

Magna-Power Electronics, a leader in high power programmable DC power supplies, announced 2 week lead-time for its products spanning power levels 1.5 kW to 15 kW, which includes the newly introduced SL Series 1U (1.75” high). With its vertically integrated manufacturing and engineering facility in Flemington, NJ USA, the company made significant investment in material, equipment, manufacturing space and improved processes to achieve the reduced lead-time.

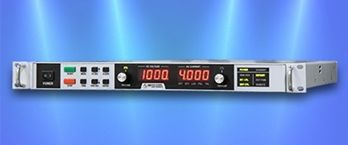

Magna-Power Electronics new SL Series 1U (1.75” high) programmable DC power supply. The SL Series continues the Magna-Power Electroincs commitment to market-leading power density, offering models at 1.5 kW, 2.6 kW and 4 kW—all in a 1U rack-mount package. The new SL Series was released with 54 different models, with voltage ratings ranging from 5 Vdc to 1000 Vdc and current ratings ranging from 1.5 Adc to 250 Adc. Key features include:

  • » Extensive Programming Environments: IVI Driver, support for LabVIEW™, Visual C# and Basic .NET, LabWindows™/CVI amongst many more. 37-pin isolated analog-digital I/O and RS232 are included with all models. IEEE-488 GPIB, LXI TCP/IP Ethernet, and USB available as options.
  • » High Accuracy Programming and Monitoring: ±0.075% of full-scale programming, ±0.2% of full-scale monitoring from the power supply for both voltage and current.
  • » Three Phase or Universal (UI) Single Phase Input: Choose from a new active PFC 1F Universal Input (UI) available on 1.5 kW models or from 3F 208/240 Vac, 380/415 Vac, or 440/480 Vac input available on all models.
  • » USA Designed and Manufactured: Designed and manufactured at Magna-Power Electronics headquarters in Flemington, NJ.

Product Line Overview

All Magna-Power Electronics programmable DC power supplies come standard with the company’s signature current-fed power processing, front panel rotary control, RS232 interface for computer programming, 37-pin isolated analog-digital I/O for external control, and IVI drivers for LabVIEW™ and Visual Studio integration.

telonic1 2 week lead-time on programmable DC power supply products 1.5 kW to 15 kW from Telonic InstrumentsMore Info XR Series III: 2 kW, 4 kW, 6 kW, and 8 kW Models

70 different models
Voltage Range: Models from 0-5 Vdc up to 0-1000 Vdc
Current Range: Models from 0-2 Adc up to 0-375 Adc
Enclosure: Rack-mount, 2U
Lead-time: 2 weeks
Available Options: High Slew Rate Output (+HS), IEEE 488.2 GPIB Interface (+GPIB), LXI TCP/IP Ethernet (+LXI), Photovoltaic Power Profile Emulation (+PPPE), USB External Interface (+USB)
telonic2 2 week lead-time on programmable DC power supply products 1.5 kW to 15 kW from Telonic Instruments

More Info

 TS Series IV: 5 kW to 45 kW Models

80 different models
Voltage Range: Models from 0-5 Vdc up to 0-4000 Vdc (floating)
Current Range: Models from 0-1.2 Adc up to 0-2700 Adc
Enclosure: Rack-mount, 3U (5 kW to 15 kW), 6U (20 kW to 30 kW), 9U (45 kW)
Lead-time: 2-4 weeks
Available Options: High Isolation Output (+ISO), High Slew Rate Output (+HS), IEEE 488.2 GPIB Interface (+GPIB), LXI TCP/IP Ethernet (+LXI), Photovoltaic Power Profile Emulation (+PPPE), USB External Interface (+USB), Water Cooling (+WC)
telonic3 2 week lead-time on programmable DC power supply products 1.5 kW to 15 kW from Telonic InstrumentsMore Info MS Series IV: 30 kW to 75 kW Models

80 different models
Voltage Range: Models from 0-5 Vdc up to 0-4000 Vdc (floating)
Current Range: Models from 0-7.2 Adc up to 0-4500 Adc
Enclosure: Floor standing, 22U (30 kW to 60 kW), 28U (75 kW)
Lead-time: 3-4 weeks
Available Options: High Isolation Output (+ISO), High Slew Rate Output (+HS), IEEE 488.2 GPIB Interface (+GPIB), LXI TCP/IP Ethernet (+LXI), Photovoltaic Power Profile Emulation (+PPPE), USB External Interface (+USB), Water Cooling (+WC)
telonic4 2 week lead-time on programmable DC power supply products 1.5 kW to 15 kW from Telonic InstrumentsMore Info MT Series VI: 100 kW to 2000 kW+ Models

80 different models
Voltage Range: Models from 0-16 Vdc up to 0-4000 Vdc (floating)
Current Range: Models from 0-24 Adc up to 0-24000 Adc
Enclosure: Floor standing, 19″ racks
Lead-time: 3-4 weeks (100 kW to 150 kW), 5-6 weeks (250 kW+)
Available Options: High Slew Rate Output (+HS), IEEE 488.2 GPIB Interface (+GPIB), LXI TCP/IP Ethernet (+LXI), Photovoltaic Power Profile Emulation (+PPPE), USB External Interface (+USB)
telonic5 2 week lead-time on programmable DC power supply products 1.5 kW to 15 kW from Telonic InstrumentsMore Info

Photovoltaic Power Profile Emulation (+PPPE)

Magna-Power Electronics version 2.0 of it solar array simulation software Photovoltaic Power Profile Emulation (PPPE) enables any Magna-Power Electronics power supply, from 2 kW to 2000 kW+, to emulate the power profile characteristics of solar array and vary these characteristics over time as a function of temperature and sunlight. Key new features include: EN50530 Modeling, Live Output Viewer, Advanced Data Logging, SCPI Command Export for LabVIEW™ integration.



For more information about SALE or HIRE of these products call Telonic on: +44 (0)118 9786911.
