Lake Shore Cryotronics is a leading innovator in solutions for measurement over a wide range of temperature and magnetic field conditions; passionately committed to our customers’ pursuit of the science that benefits mankind.
Lake Shore is available in the UK and Ireland exclusively through Quantum Design UK and Ireland.
Learn about Lake Shore Cryotronics’ new patented seamless auto-ranging technique
Traditional auto-ranging techniques often suffer from time and gain correction discontinuities, discouraging users from auto-ranging techniques in favour of smooth yet noisier measurements.

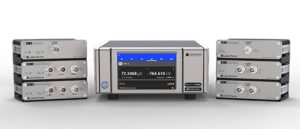

That changes when you use the M81-SSM with the VM-10 module. This patented processing algorithm allows you to collect low-noise data with smooth transitions across four decades of voltage ranges. Get quality data without the gaps, glitches, or discrepancies that occur with traditional auto-ranging implementations.
Get this new app brief today, click here to download
About This Technical Note
Voltmeters are typically constructed with various gain stages for optimal signal-to-noise ratio. Noise figures can vary by several orders of magnitude based on the selected voltage range, necessitating operation within the optical range for the best measurements. Auto-ranging algorithms can help manage this, especially when measuring novel materials or devices that display unpredictable signals or undergo large dynamic changes. For instance, during a metal-to-insulating phase transition, there can be large resistance changes that require crossing multiple voltage measurement ranges. Traditional auto-ranging techniques often suffer from time and gain correction discontinuities, discouraging users from users from auto-ranging techniques in favour of smooth yet noisier measurements. In this technical note, Lake Shore will describe the VM-10 patented seamless auto-ranging technique, which utilises both hardware and software to create a smooth, seamless transition across 4 decades of voltage ranges.
To learn more about Lake Shore Cryotronics and the M81-SSM, visit qd-uki.co.uk or call Shayz Ikram on 01372 378822, email shayz@qd-uki.co.uk
