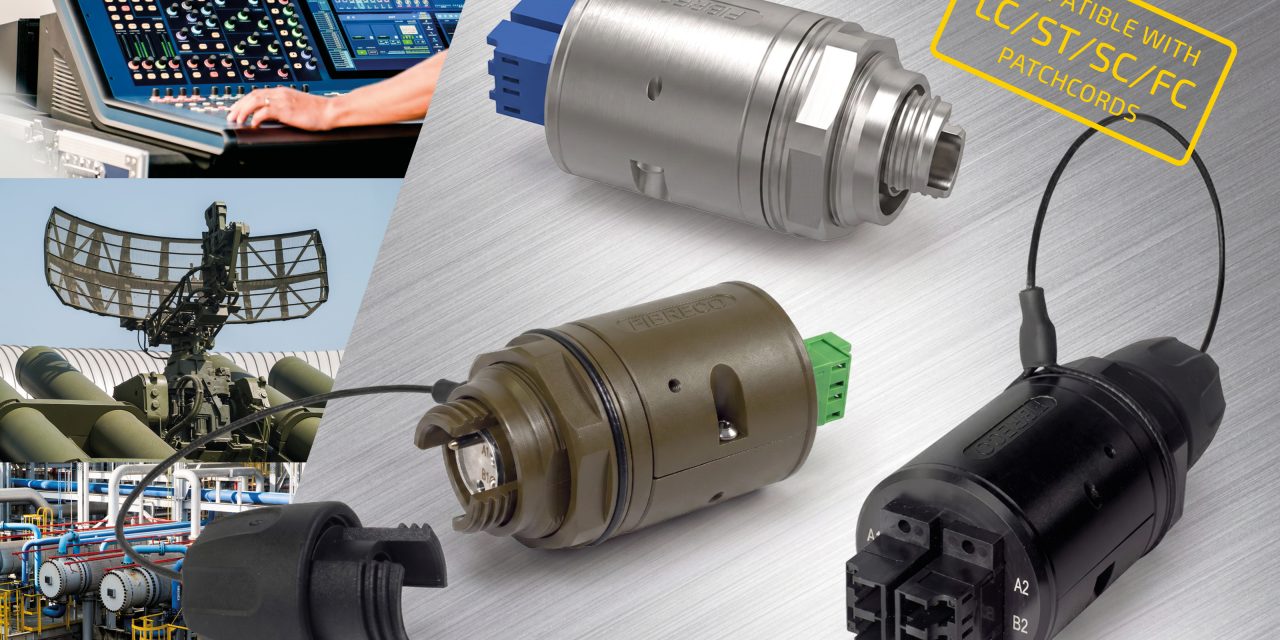

Specialist connector distributor Lane Electronics has announced availability of the newly released Cinch-Fibreco JCON series. The JCON Junior Bulkhead Expanded Beam Adapter is designed to simplify panel-mounted fibre-optic connectivity by enabling standard patchcords to be used between the adapter and the transceiver.
Until now, high-performance expanded beam connector panel adapters have not offered the same straightforward installation approach available with LC and similar fibre-optic connectors. Connecting an expanded beam connector to a transceiver typically required a custom cable assembly, made to the required length and fitted with the required connector types.
Key benefits
The new Cinch-Fibreco JCON adapter supports straightforward panel-mounted installation and connects to the transceiver using a standard, off-the-shelf LC/LC patchcord. This gives designers greater flexibility as system requirements evolve, since cable lengths can be adjusted simply by selecting an alternative patchcord. It also simplifies production configuration by allowing different standard product models to be supported through patchcord changes, while enabling fast field replacement if cabling is damaged, with no termination required.
About JCON expanded beam adapters
JCON connectors are the trusted solution for mission-critical fibre optic connectivity, combining rugged construction with simplified installation and superior optical performance. They are engineered for reliable performance in the most demanding applications and environments such as ground-based tactical communication systems, outside broadcast consoles, industrial systems, mining, marine and offshore systems.
The JCON series features an M83526 compliant fibre optic interface, along with rear adapter plate for standard commercial connectors allowing easy use with readily available patch cords. The expanded beam ferrule-to-lens alignment utilises Cinch-Fibreco patented optical technology, ensuring optimal signal integrity and minimising maintenance.
The JCON series is a bulkhead connector with D-hole panel cut-out for easy panel integration. Standard configuration features an anodised aluminium connector shell in black colour, available with 2 or 4 optical channels, and LC-duplex end adaptor plate. Key features include:
- Plug-and-play compatibility with standard LC/ST/SC/FC patch cords.
- Channel Count: 2 or 4 optical channels.
- Fiber Type: Single- or Multimode.
- Optical performance in line with MIL-DTL-83526.
- Optional: Zinc Cobalt finish in Olive colour.
- Optional: Stainless Steel shell.
- Bulkhead-D and square flange options.
- Tool-free installation for quick deployment.
- Easy to clean.
The JCON adapter features a M83526 compliant interface, which enables plug connectors according to MIL-DTL-83526/20 with 2 or 4 optical channels to be mated.
Lane Electronics connectivity solutions include RF and Fibre-Optic connector and cable assemblies, widely used in defence and security applications, and is a franchised distributor for many of the industry’s leading electrical and electronic connector manufacturers including EATON Souriau, HUBER+SUHNER, HellermannTyton, Positronic, Axon’, Nicomatic and LEMO.
Backed by a strong commitment to quality, reliability and traceability procedures Lane Electronics also hold a significant number of key approvals. Next day delivery is available on more than 90% of standard products while, for non-standard products, rapid in-house development, assembly and testing of specialist military, industrial and motorsport circular connectors is available lead times which are generally much quicker than those offered by other connector suppliers.
For more information call +44 (0) 1403 790 661, email sales@fclane.com or visit https://www.fclane.com/
