Engineers from around the world put their trust in Dataforth for removing analogue measurement errors from systems design and development whilst providing a better user experience for data acquisition and control. Dataforth is known for instrument class isolation, protection, accuracy and reliability across our complete span of signal conditioning and data acquisition product range.
Introducing Dataforth’s MAQ20 – A Modular Data Acquisition & Control System
Dataforth have utilised their expertise in high performance signal conditioning as a front-end for their MAQ20 data acquisition system. The MAQ20 is a compact, rugged and reliable system designed for anywhere from the laboratory to heavy industrial environments. Modbus communication protocol via Ethernet, USB or Serial (RS-232/485) allows for simple integration into many existing software packages.
A MAQ20 DAQ system consists of a communication module, a system backbone and your choice of I/O modules to measure temperature, strain, frequency or industry standard signals such as 4-20mA. Our thermocouple, RTD and strain gauge modules provide a direct sensor interface. All MAQ20 I/O modules provide individually configurable input ranges and alarms. The high density I/O also maximises channel count with minimum space requirement; you can fit up to 24 I/O modules – 384 channels – per MAQ20 DAQ system in a 19” rack. The MAQ20 data acquisition and control system is designed for industrial operating temperature ranges between -40°C and +85°C.

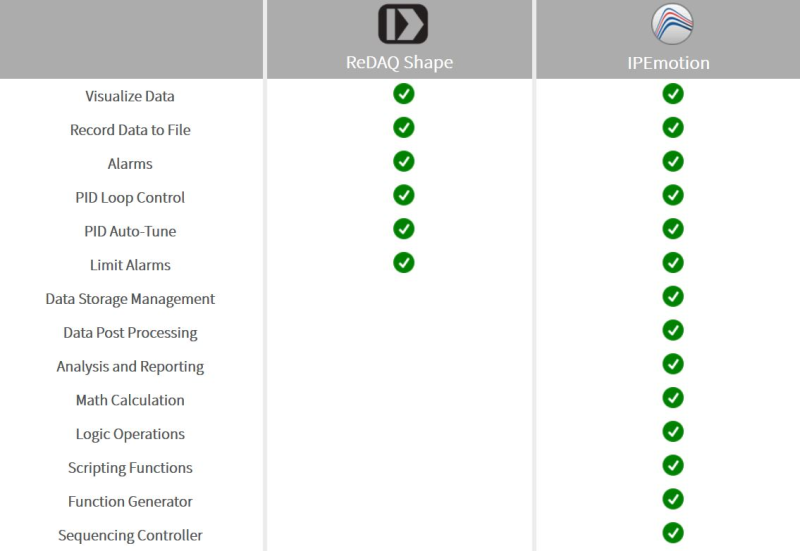

Dataforth’s ReDAQ Shape software is developed in-house and makes recording and visualising data simple with a low-cost user and developers licence fee. Partnering with IPEmotion, the MAQ20 also provides a feature rich data acquisition environment with data storage management, math, post processing, software PID and event sequencing which is ideal for test and measurement applications. Based on Modbus communication, the MAQ20 is also compatible with many industry standard software packages including DASYLab, LabVIEW and OPC.
Click here to view the latest MAQ20 brochure.
Do you experience noise on your signals or require isolation?
Dataforth’s industrial signal conditioning modules protect valuable measurement, control signals and equipment from the dangerous and degrading effects of noise, transient power surges, internal ground loops, and other hazards present in industrial environments.
Why choose Dataforth signal conditioners & 4-20mA transmitters?
The industry’s largest selection: Over 1000+ fixed function input / output modules; Input modules accept accelerometer, current, digital, frequency, potentiometer, RMS, RTD, strain gauge, thermistor, thermocouple and voltage input signals.
Output modules accept high-quality voltage, current and digital signals from the control system then buffer, isolate, amplify and convert the signal into a high-quality output for the field devices to be controlled.
Standardise your output signals: 0-5V, 1-5V, 0-10V, ±5V, ±10V, 0-20mA, and 4-20mA.
Outstanding accuracy and linearisation: As high as ±0.03% accuracy with a ±0.015% linearisation span.
Lower output noise: Up to 6-pole filtering with 160dB CMR and 95dB NMR at 60Hz.
Up to 4-way isolation: 1,500Vrms transformer isolation & 240Vrms field-side protection. Isolated power to the field-side electronics, isolated power for system-side electronics, isolated sensor excitation and an isolated signal path to the instrumentation device.
Convenient system expansion and repair: Available as modular plug-in or DIN mount solutions.
Wide ranging power supply options: 5V DC, 14-35V DC, 19-29V DC, 15-30V DC, and 10.8-60V loop supply.
Extended operating temperature: -40°C to +85°C
Industrial certifications: CSA, UL, CE, FM, RoHS, Reach and ATEX
Backed by a 3-year warranty: Our commitment to product which exceeds our customers’ expectations.
Custom design services available: Speak to one of our innovative analogue and isolation circuit developers.
Dataforth operates under an ISO9001:2008 quality management system. After production, our products are 100% tested twice which includes a 48-hour burn-in operation. Once complete, all test results are uploaded here on the Dataforth website.
Get in touch with Dataforth’s UK Sales Office
Dataforth’s European sales office is in the UK to provide local sales, marketing and technical support for customers throughout Europe, Russia, Africa and the Middle East.
If you’d like a quotation or require technical assistance Dataforth’s European Sales and Technical Managers can be contacted via the following details: T: +44(0)1785 472 727, E: customerservice@dataforth.eu, www.dataforth.eu
