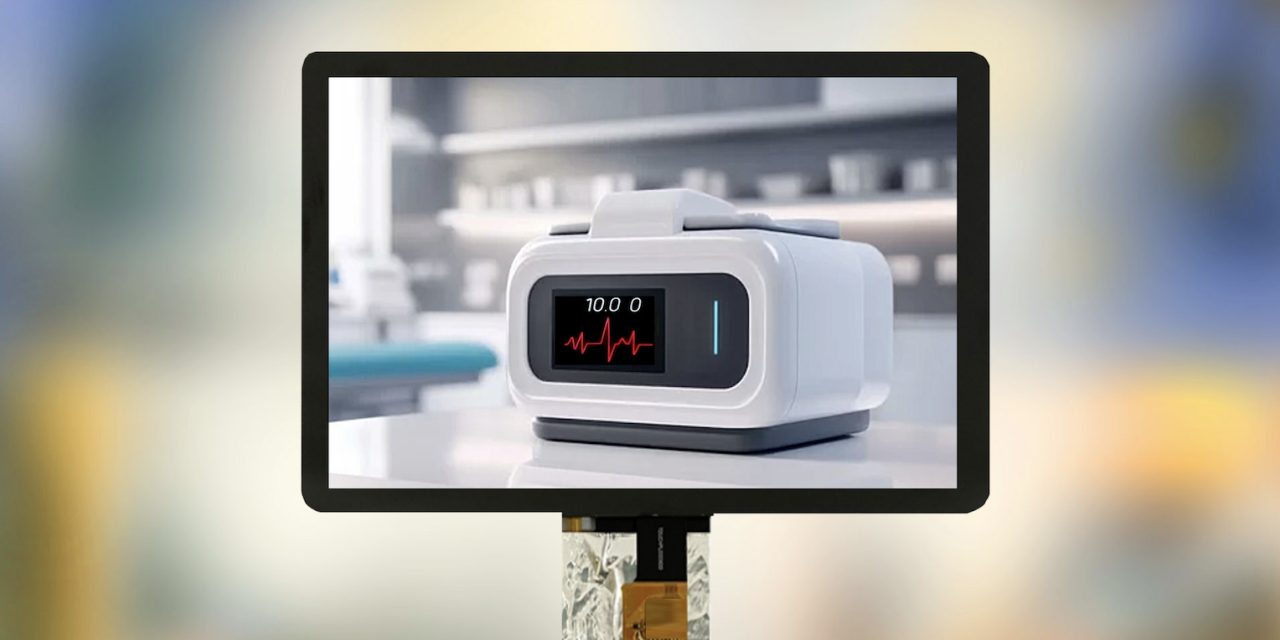

Inelco Hunter is pleased to announce the introduction of a new 3.5 inch TFT display featuring IPS (In-Plane Switching). IPS is a high-performance liquid crystal display (LCD) technology known for superior colour accuracy and wide viewing angles. IPS liquid crystals rotate parallel to the display surface to improve light transmission. The main features of the display include VGA resolution, an SPI interface and 500nits brightness.
All of the usual features are now available in a 3.5 inch high-resolution format. This size makes the touch panels ideal for applications requiring a smaller screen, such as industrial instrumentation, vending machines, point-of-sale screens, EV charging stations, smart home control panels and medical devices.
The LCM (Liquid Crystal Display Module) has a thickness of 3.2mm, with 12 backlight LEDs and a typical current consumption of 40mA. The resolution is 640 * 480 pixels (RGB, 24-bit colour). The LCM has a 24-bit RGB parallel interface, and SPI (configuration). The brightness is 500 cd/m2 and the MTBF is 50,000 hours. The product offers a full viewing angle, normally black. The operating temperature is -20°C to +70°C. The drive IC is an NV3052CGRB (or compatible IC).
In addition to offering the displays as a standard product, Inelco Hunter offers a customisation service to help customers to adapt products for their own solutions. Inelco Hunter’s engineering team can help customers define the project requirements, including as-yet unformed product ideas, turning a concept into an outstanding product. This added-value support is at the core of Inelco Hunter’s philosophy, and has been for over 30 years, setting them apart from the “stock and ship” distributors.
Direct link to the product information page:Â inelcohunter.co.uk/3-5-inch-ips-display/
Inelco Hunter website:Â inelcohunter.co.uk
